CAS D'USAGE | Eve Aqua
Automatic multi-zone lawn and flowerbed irrigation made easy
Jul 19, 2019 - Par Ina - Commentaires



Summertime is upon us – and that means, of course, summer vacation! Having equipped our potted plants on the patio to survive a few days without us, we now turn our attention to the yard. After all, we want our grass to be green when we return from our two-week vacation.



That said, we have neither the time nor the inclination to install an underground sprinkler system. We want an affordable option that works and can be easily modified at any time.



With a corner house flanked by a yard with several beds, we have a lot of different areas to water. We’ll admit, it seemed a bit daunting at first, but in the end it only took us about 5-6 hours.

Setting up watering periods

Using the latest version of the Eve app – Eve 3.8 – we’re now able to run a Gardena Automatic Water Distributor with up to six different watering periods, which allows us to water up to six areas one after the other. The distributor is a mechanical device that receives water through one input and distributes it through six outlets. That way you can connect sprinklers, drip systems, misters and more. When the water pressure stops, the distributor switches to the next outlet.

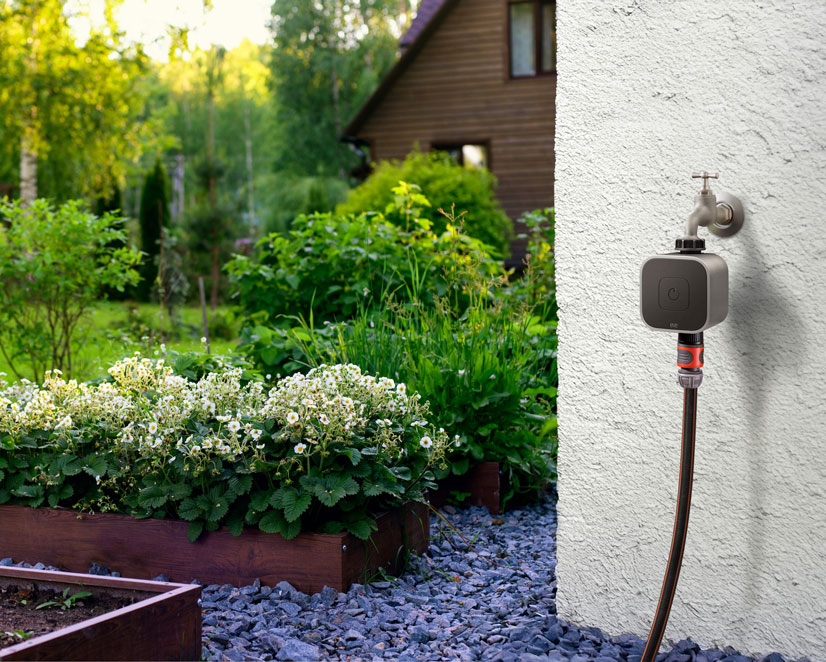

What makes this system smart is Eve Aqua, which you connect between your faucet and the Gardena distributor. Use the Eve app to easily set up different watering periods for each of the six outlets.



This is what our setup looks like:



  • Outlet 1: Micro-drip watering system for our patio potted plants
    (read how we set that up here
    Water for 8 minutes, daily


  • Outlet 2: Grass east side
    Water for 20 minutes, 3x weekly


  • Outlet 3: Hedge east side
    Water for 1 hour, 3x weekly


  • Outlet 4: Grass, raised flower bed & perennial bed
    Water for 30 minutes, daily


  • Outlet 5: Rock garden north side
    Water for 4 minutes, daily



And it was so simple to set up in the Eve App:

Any unused outlets can be locked using a lever – outlet 6 in our case.



It’s important to remember that the Gardena Distributor is a mechanical device that switches to the next outlet based on the loss of water pressure – so from 1 to 2 and 2 to 3, and so on. The system activates each unlocked outlet, even if on some days it’s only set for one minute.



For example, our grass on the east side doesn’t need to be watered every day. So, set outlet 2 to be activated on Mondays for 20 minutes and on Tuesdays for only one minute. The Eve app allows you to match the programmed watering periods to the needs of each individual area of your yard. We also recommend inserting brief pauses between the watering periods so that the water pressure in the distributor drops.

Flexibility at its finest

We have some spots that don’t need to be watered regularly. To reach them, we simply connect standard hoses. If multiple spots need the same amount of water, we can add a 3-way Y coupling to distribute the water to those spots (outlet 4 in our case).



We can then add sprinklers or micro-drip systems depending on what needs to be watered. Just like on our patio, this works in our perennial beds by connecting a garden hose and connecting pipe (black) through a micro-drip-master unit.

You can lay the connecting pipe through the entire bed (ours was some 30 m), adding more connecting pipes, if necessary, using T-joints or 4-way couplings. Then you can add all types of  spray nozzles or drip heads anywhere along the way. Keep in mind that you’ll need a mechanical  installation tool. Simply drill into the side of the raised bed to run the connecting pipe through it.



All in all, this project took an intuitive app, the right hardware, and a whole lot of hose and hose connectors! It really went faster than we thought and by afternoon we were relaxing contently on the patio. Summer vacation, here we come!



And the great thing about this setup is that if it does rain while we’re away, it only takes a few taps in the app to put the system on hold. But you’ll need a home hub for that. Eve recommends Apple TV or HomePod.

Contrôleur d’eau intelligent
En savoir plus

Maintenant compatible Thread
Acheter
Votre choix
Acheter
Livraison gratuite en Allemagne, TVA incl.
Votre choix
Choisissez votre pays
Station météo connectée
En savoir plus

Maintenant compatible Thread
Acheter
Votre choix
Acheter
TVA incl., hors frais de port
Votre choix
Choisissez votre pays
Lampe LED intelligente portable
En savoir plus

Acheter
Votre choix
Acheter
Livraison gratuite en Allemagne, TVA incl.
Votre choix
Choisissez votre pays
Prise intelligente avec compteur de consommation
En savoir plus

Maintenant compatible Thread (Europe, Royaume-Uni, États-Unis et Canada)
Acheter
Votre choix
Acheter
Livraison gratuite en Allemagne, TVA incl.
Votre choix
Choisissez votre pays
8 Commentaires
Scott
Couldn’t you have taken the setup further by integrating the Eve Weather for weather based interruptions (humidity, air pressure, etc.)? I don’t own either, nor use HomeKit, so I am unfamiliar as to whether or not this is possible. If not, that’s a huge miss on integration in my opinion.
Reply
Jun 6, 2021
Hello Scott! All Ev accessories are Homekit exclusive. Without HomeKit it will just display temperature and humidity plus weather trend. Best regards, Volker
Reply
Jun 7, 2021
D
Will the Eve Aqua work with a Melnor 2 zone automatic water timer if I put it on manual and create the zones in the Eve Aqua app?
Melnor 2-Zone Automatic Water Timer https://www.amazon.com/dp/B074J7MM94/ref=cm_sw_r_cp_api_glt_fabc_F8X3SKZ619MCGSZP6PN2?psc=1
Reply
Mar 21, 2021
Hello D! It makes no sense as the Eve Aqua is a watering computer itselft. I would use either. Best regards, Volker
Reply
Mar 22, 2021
Hi, there is something I'd like to clear up: if I program my Eve Aqua with my iPhone via Bluetooth say for watering something 2 times a day, is it correct saying that I can walk away and the Eve Aqua will run the watering program without using any other device as Apple TV or anything else? Means the watering program is stored within the memory of Eve Aqua?
Thanks for your reply in advance.
Reply
Apr 25, 2021
Hello Lajos! This is correct when using the Eve function Schedule. You have to be close to Eve Aqua with the iPhone to set it up. It gets then transferred from the iPhone to Eve Aqua and is executed there if you are around or not. You do not need a home hub for this functionality. Best regards, Volker
Reply
Apr 26, 2021
Rene
The Gardena products are not distributed in United States. How do I find/locate a US distributor?
Reply
Dec 29, 2020
Hello Rene! Most of our customers get their Gardena devices/accessories at Amazon US. Best regards, Volker
Reply
Dec 31, 2020
